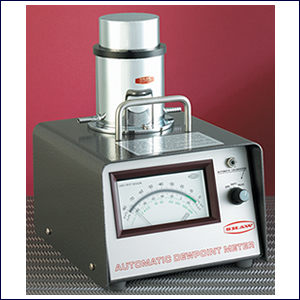

SADP

(More info Click Here)
SADP Portable hygrometer in stove enamelled zinc plated steel and alloy case, complete with padded carrying case. For table top or portable use with dessicant chamber for rapid readings. Automatic Dewpoint Meter is certified by ATEX: Intrinsically Safe to II I G EEx ia IIC T6 FM: Intrinsically Safe Class 1, Division 1, Groups A&B, C, D, T6.
|
|

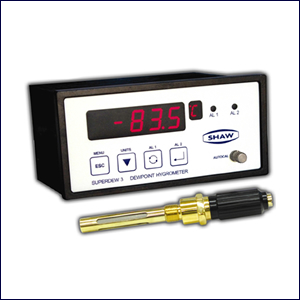

Superdew 3

(More info Click Here)
The SUPERDEW 3 Model from Shaw Moisture Meters is a single channel on-line hygrometer designed to measure dewpoint in process gases and compressed air. The panel mounted enclosure panel dust tight protection. Weather proofing optional.
|
|
|
|
|
|

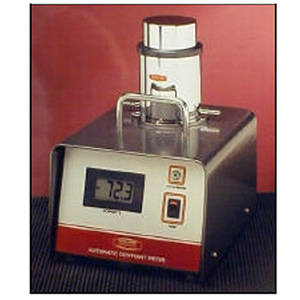

SADP Digital

(more info click here)
Accuracy: Sensor accuracy typically 1PPM equivalent i.e. +/-3 deg. C DP Type: Portable hygrometer in stove enamelled zinc plated steel and alloy case, complete with padded carrying case. For table top or portable use with dessicant chamber for rapid readings. Intrinsically safe LCIE certified to Eex.ia IIC T6.
|
|

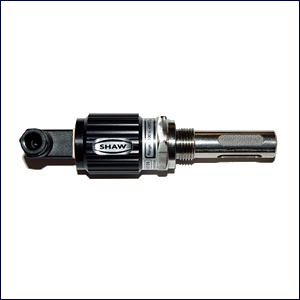

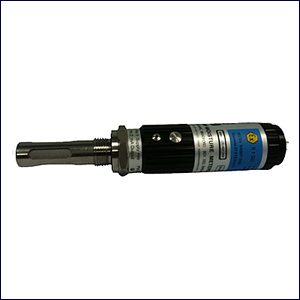

SDT Transmitter

(More info Click Here)
The Shaw Moisture Meters Model SDT is a compact, 2 wire, 4-20 mA dewpoint transmitter with integral sensor designed to meet the stringent demands of industrial applications. The unit is fully self contained within a robust housing providing weatherproof protection to IP66 / NEMA4.
|
|
|
|
|
|
SDT-Ex Transmitter

(More info Click Here)
The Shaw Moisture Meters Model SDT-Ex is a compact, 3 wire, 4-20 mA dewpoint transmitter with integral sensor designed to meet the stringent demands of industrial applications. The unit is fully self-contained within a robust housing providing weatherproof protection to IP66 / NEMA4X.
|
|

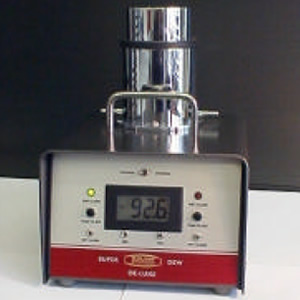

SuperDew De-Luxe, SDDL

(more info click here)
Accuracy: Sensor to 1PPM equiv, +/- 4 deg. C DP Type: Mains operated portable hygrometer in stove enamelled zinc plated steel and alloy case, complete with leather padded carrying case. For table top or portable use with dessicant chamber for rapid readings. Dimensions / Weight: Overall dimensions: 202mm x 225mm x 276mm High (320mm with head extended) Weight: 4 Kg approx.
|
|
|
|
|
|

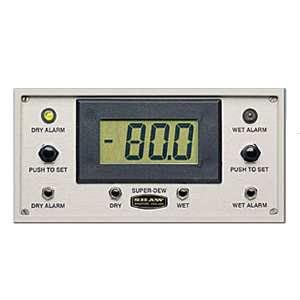

SDG

(More info Click Here)
The SDG has a practical dew point range of - 80 degrees c. dew point which is from less than one part per million of water vapour, up to the moisture level in room air. There is much more to the Super-Dew than first meets the eye. It can be connected by ordinary t/v cable, to a Shaw moisture sensor, from a remote site up to half a mile distant.
|
|

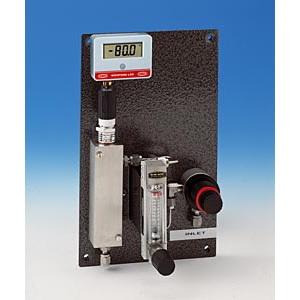

SU4

(More Info Click Here)
The SU4 will reduce the pressure from the dryer to give a flow suitable for measurement. It combines a pressure reduction control, sensor holder and a flow meter for up to 10 litres per minute. (1-2 litre is usual for continuous use). Moisture measurement under pressure will not give the correct answer but room pressure used in the SU4 will read correctly.
|
|
|
|
|
|

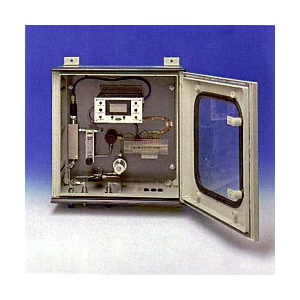

SWS-SD

(More Info Click Here)
Accuracy:1% across meter range. For Sensor accuracy see sensor specification sheet. Description: IP65 Weatherproof housed In-line hygrometer in GRP enclosure with Perspex window, for wall or pedestal mounting, including SuperDew meter and sample system comprising 3 port sample selection valve, filter unit, pressure regulator, flow indicator, sensor holder and sensor.
|
|

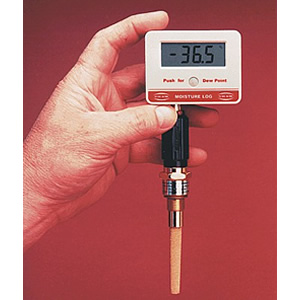

Moisture Log

(More info click here)
Accuracy: 1PPM equivalent or +/- 3 deg. C DP across meter range. Type: Battery operated logging portable and in-line hygrometer in plastic case Dimensions / Weight: (meter) Overall dimensions: 70mm x 55mm x 26mm depth Weight: 80g approx. Display: 1.2cm LCD digital indicating meter showing Dewpoint.
|
