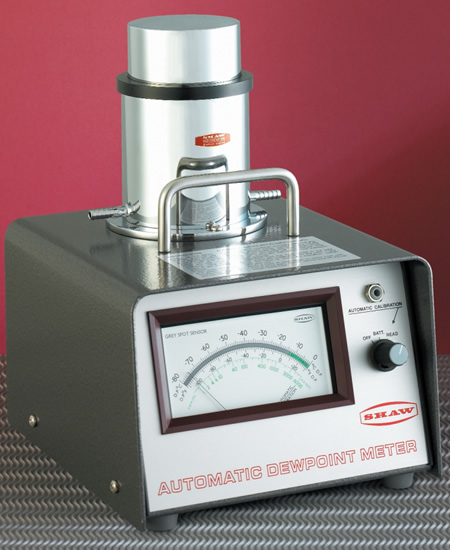

SADP Portable Hygrometer

Order by Phone: (504) 523-1789 Skype: (303) 800-5861 Fax: (877) 835-1161

SADP Portable Hygrometer

Download Brochure

Accuracy: Typically to +/-1PPM or +/-3 or 4 deg. C DP.

Type: SADP Portable hygrometer in stove enamelled zinc plated steel and alloy case, complete with padded carrying case. For table top or portable use with dessicant chamber for rapid readings. Automatic Dewpoint Meter is certified by ATEX: Intrinsically Safe to II I G EEx ia IIC T6 FM: Intrinsically Safe Class 1, Division 1, Groups A&B, C, D, T6.

Dimensions / Weight: Overall dimensions: 202mm x 225mm x 276mm High (320mm with head extended) Weight: 4 Kg approx.

Display: 12cm Taut Band indicating meter showing Dewpoint and ppm, with
amplified range of 0-10ppm on TR versions.

Sensor Connection: Internal.
Power Supply: 9V DC ( 6 C type cells ) Internal

Sensor Connection: Internal.

Power Supply: 9V DC ( 6 C type cells ) Internal

Sampling: Pressure: atmospheric with flow rate of 5 - 10 litres/minute

Outputs: None.
Calibration: Autocal on all but Blue range.

Accessories / Options: SU4 Lo, Med or Hi Sample system for sample conditioning pressurised gases
to atmospheric conditions and controlled flow.

Sensor Type {r}:Sensor Range:
Purple: {P}-100 / 0 deg.C DP, 0-6000ppm, (auto-cal)
Red: {R}-80 / -20 deg.C DP, 0-1000ppm, and 0-10 on TR version, (auto-cal)

Grey : {G} -80 / 0 deg.C DP, 0 - 6000 ppm, and 0-10 on TR version,
(auto-cal) Blue: {Bl} * -80 / +20 deg.C DP, 0 - 23,000 ppm (manual-cal)

To Order: SADP {r}: suffix TR if required for G and R ranges only. Check availability
